Category trees: records inside records

A table whose records have a parent of their own kind can be shown as a tree, with another table's records hanging underneath, the selected record's form beside it, and a check that stops a branch being moved inside itself.

این مقاله فقط به انگلیسی در دسترس است.

A product catalogue tree in dark mode, Office Supplies containing Furniture, Chairs, Desks and Stationery with products under them, and Furniture's form beside it, next to the title "Category trees"

Chairs are furniture, and furniture is office supplies. Cost centres sit inside departments, and a bill of materials has parts inside parts. When a record's parent is a record of the same kind, a list is the wrong shape. You want a tree.

To follow along, import the Product Categories sample. It comes with the platform's sample solutions and has two tables, Category and Product, and a Product Catalogue app. The sample ships the structure only, so we typed in a small catalogue. Every picture is the real product.

A lookup that points at its own table

A category's parent is another category, so Category has a lookup field, Parent category, that points back at Category itself. Tell the table that this is how its records nest: select the field on the table's Fields and choose Use as parent field. The field is then marked (Parent field):

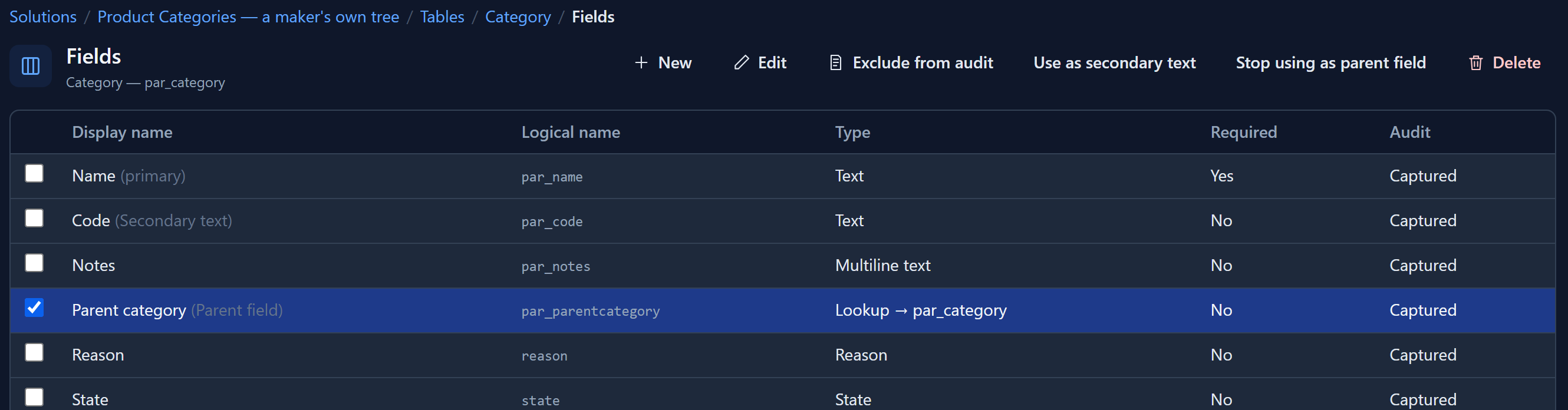

The Fields list for Category: Code marked (Secondary text), and Parent category, a Lookup to par_category, marked (Parent field), with Stop using as parent field in the command bar

The button only appears on a lookup that points at the same table. A lookup to a different table doesn't describe nesting.

Make a view into a tree

In the View Designer, set Layout to Tree and press the Tree button beside Filter. The panel says what the tree draws:

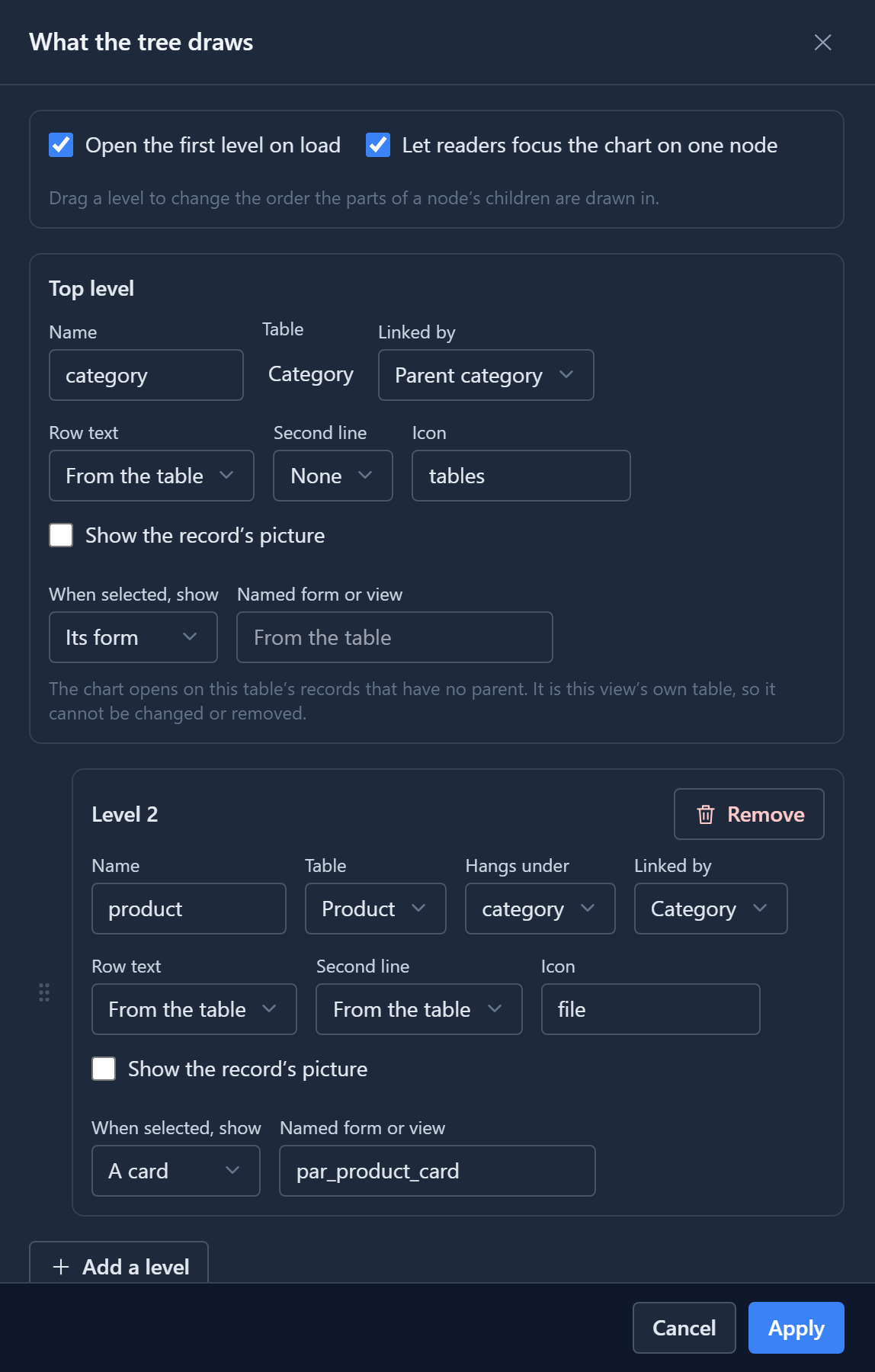

The What the tree draws panel: Open the first level on load and Let readers focus the chart on one node both ticked; Top level Category linked by Parent category, second line None, when selected show its form; Level 2 Product, hanging under category, linked by Category, when selected show a card

Top level is the view's own table, nested by the parent field. Everything else on the card is optional and comes from the table if you leave it. Here Second line is set to None, because in a tree the parent is already the row above.
Add a level hangs another table underneath. Here Product hangs under Category, linked by the product's own Category lookup, so each category's products appear inside it.
When selected, show decides what opens beside the tree: the record's form for records people edit, a read-only card for records people only read, or nothing.

Apply, then save the view.

Using the tree

Open the app and the tree is the page. Click a category and its form opens beside the tree, where you can change it and save:

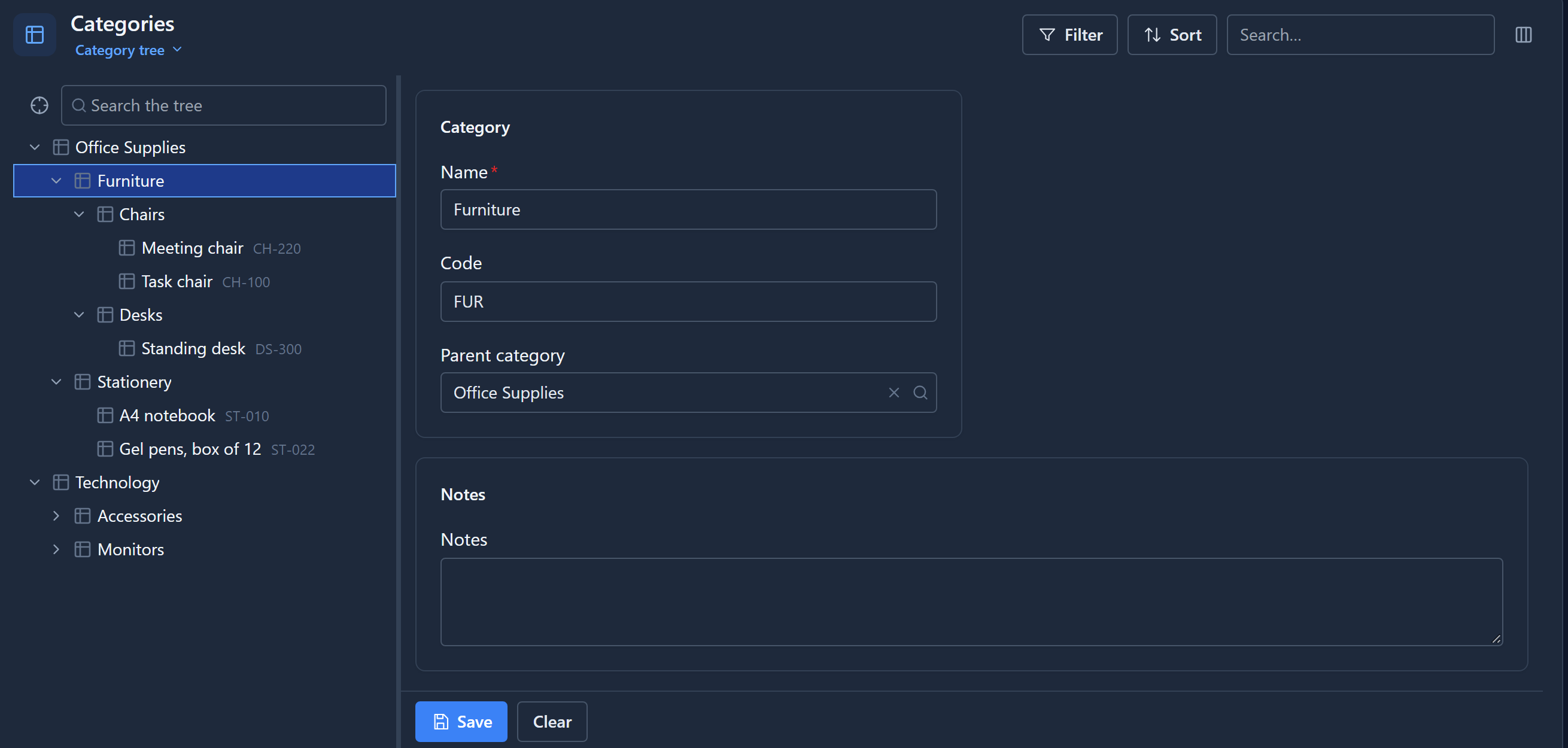

The Product Catalogue tree: Office Supplies, with Furniture selected, containing Chairs (Meeting chair CH-220, Task chair CH-100) and Desks (Standing desk DS-300), then Stationery (A4 notebook, Gel pens) and Technology; beside it Furniture's form with Name, Code FUR and Parent category Office Supplies

Products show their SKU as a second line, from the table's secondary text. Click one and its card opens instead of a form, because the view said so:

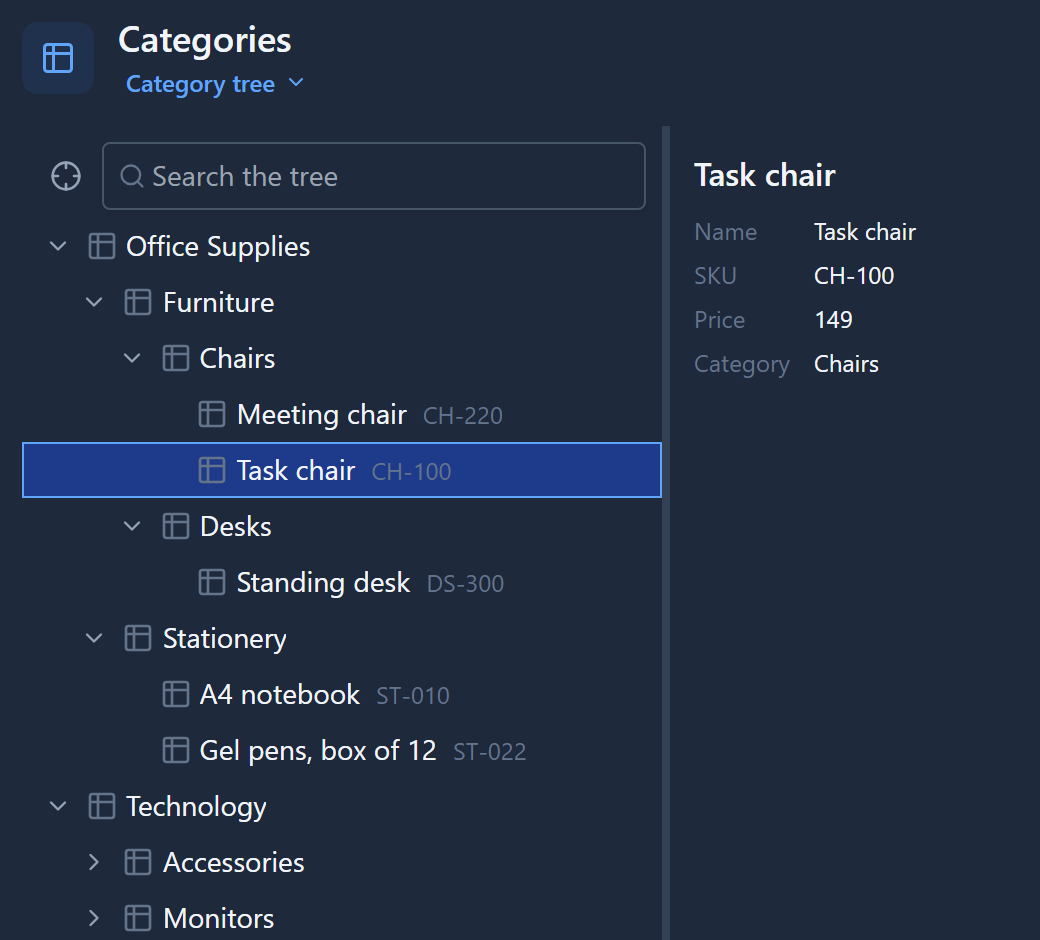

Task chair selected in the tree, with a card beside it: Name Task chair, SKU CH-100, Price 149, Category Chairs

Search the tree finds a record wherever it is and shows the branch it sits in:

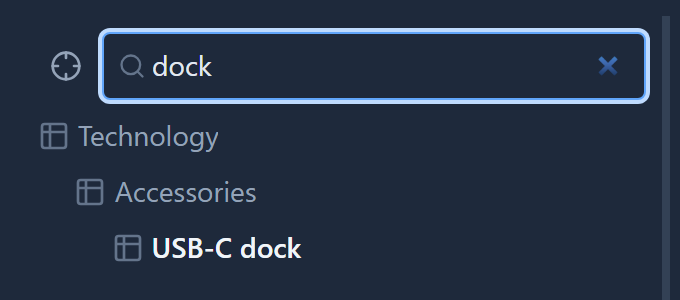

The tree searched for dock: Technology, then Accessories, then USB-C dock

Readers can also focus the tree on one branch, with the crosshair beside the search box, and step back out with the trail above it.

A branch can't move inside itself

What if someone makes Office Supplies a child of Chairs? Chairs is inside Office Supplies, so the tree would loop forever. The save is refused, whichever screen it comes from:

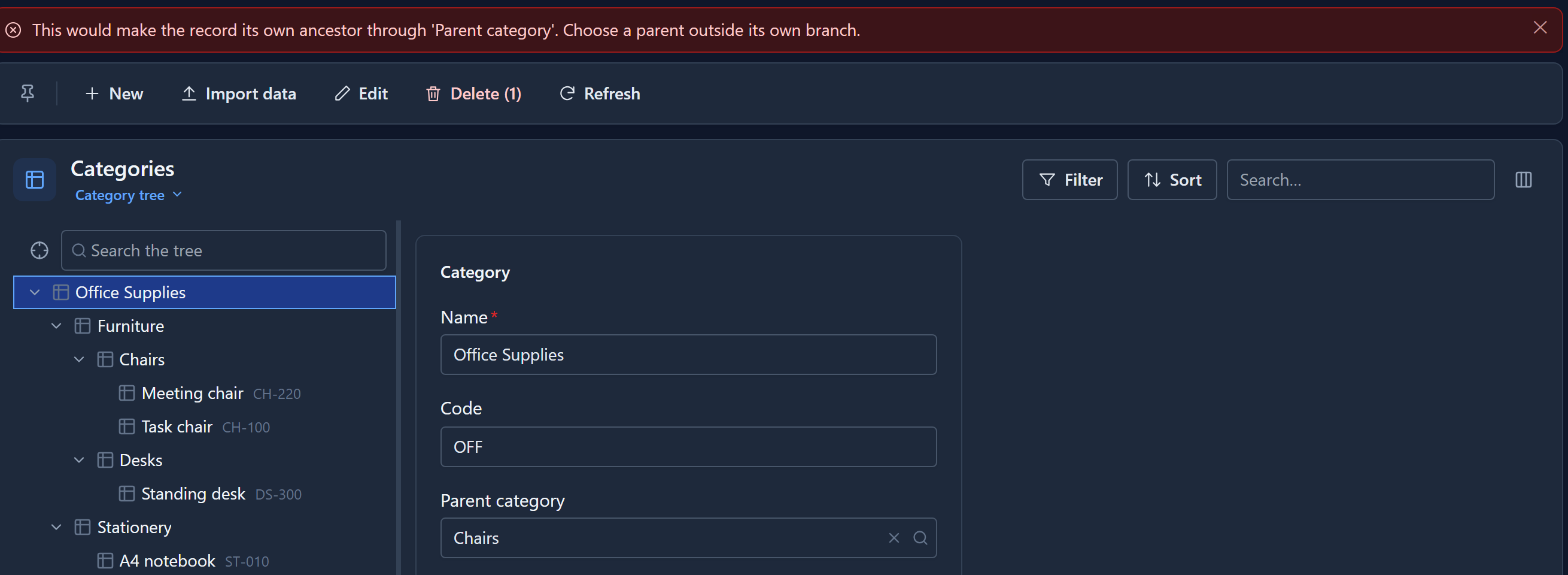

Office Supplies' form with Parent category set to Chairs, and a red message above: This would make the record its own ancestor through 'Parent category'. Choose a parent outside its own branch.

A record can't be its own parent either. Moving a branch somewhere else outside itself is fine, and everything under it moves with it.

What it's good for

The same mechanism draws the platform's own organisation chart, with units inside units and the people of each unit underneath. It's not a special screen for categories. Any table with a parent of its own kind can be a tree: regions, cost centres, folders, parts.

Next: importing records from a spreadsheet, and what happens to the rows that don't fit.
